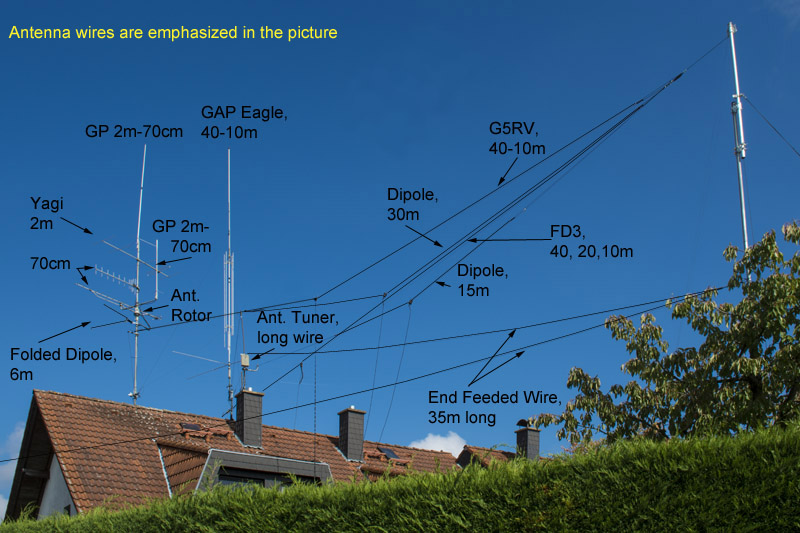

Shortwave and VHF/UHF antennas
Shortwave Antennas
Vertical Antenna:
|
40m, 20m, 17m, 15m, 12m, 10m,

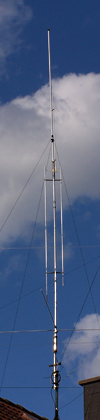

GAP Eagle DX,
1,5 Kw
Technical data see--> Eagle
DX
|
|
Windom Antenna: |
40m, 20m, 10m,
Fritzel FD-3 COM,
1,5Kw/3Kw
Total length 21m
|
|
30m-Dipol:
|
30m,
1 Kw SSB/CW
1:1 Balun
www.hari-ham.com
|
G5RV
Short Version: |
40m - 10m
1 Kw SSB/CW
|
|
End Feeded Wire:
Automatic Antenna Tuner for end
feeded wire: |
160m - 10m,
Wire type: DX-Wire Type F, total length 35m (16m + 19m)
Wire is installed as a horizontal "V".
Top View:
L=19m V* L=16m, *=
feeding point
Antenna wire from
www.dx-wire.de
Automatic
Tuner CG3000, outdoor installation
200 W
|
|
HF Portable Antenna |
Buddipole, 40m - 6m, 2m
To use the Buddipole with 10 foot / 3m
MFJ-1954 telescopic whips,,,,,see --> here
|
|
Folded Dipol: |
6m,
Self build 6m folded Dipol, in
reference to
Klaus Böttcher,
description in CQ-DL 10/2006
|
UHF/VHF
|
Yagi, 18 element, horizontal: |
70 cm |
|
Yagi, 10 element, vertical:
|
70 cm |
|
Yagi, 6 element, horizontal: |
2 m |
|
Duo-Band Groundplanes: |
2m/70cm, DIAMOND X-50 and X-300 |
Antenna Rotor for VHF/UHF Antennas
YAESU G-400
Antenna Cable
For VHF/UHF RG213,
for shortwave AIRCELL 7
Mobil HF/VHF/UHF Antenna
Diamond HV7CX
for 7/21/28/50/144/430 MHz + 10/14 MHz
Operating Manual:
HV7CX |
